Mininet / Ryu 实验踩坑记录

实验过程

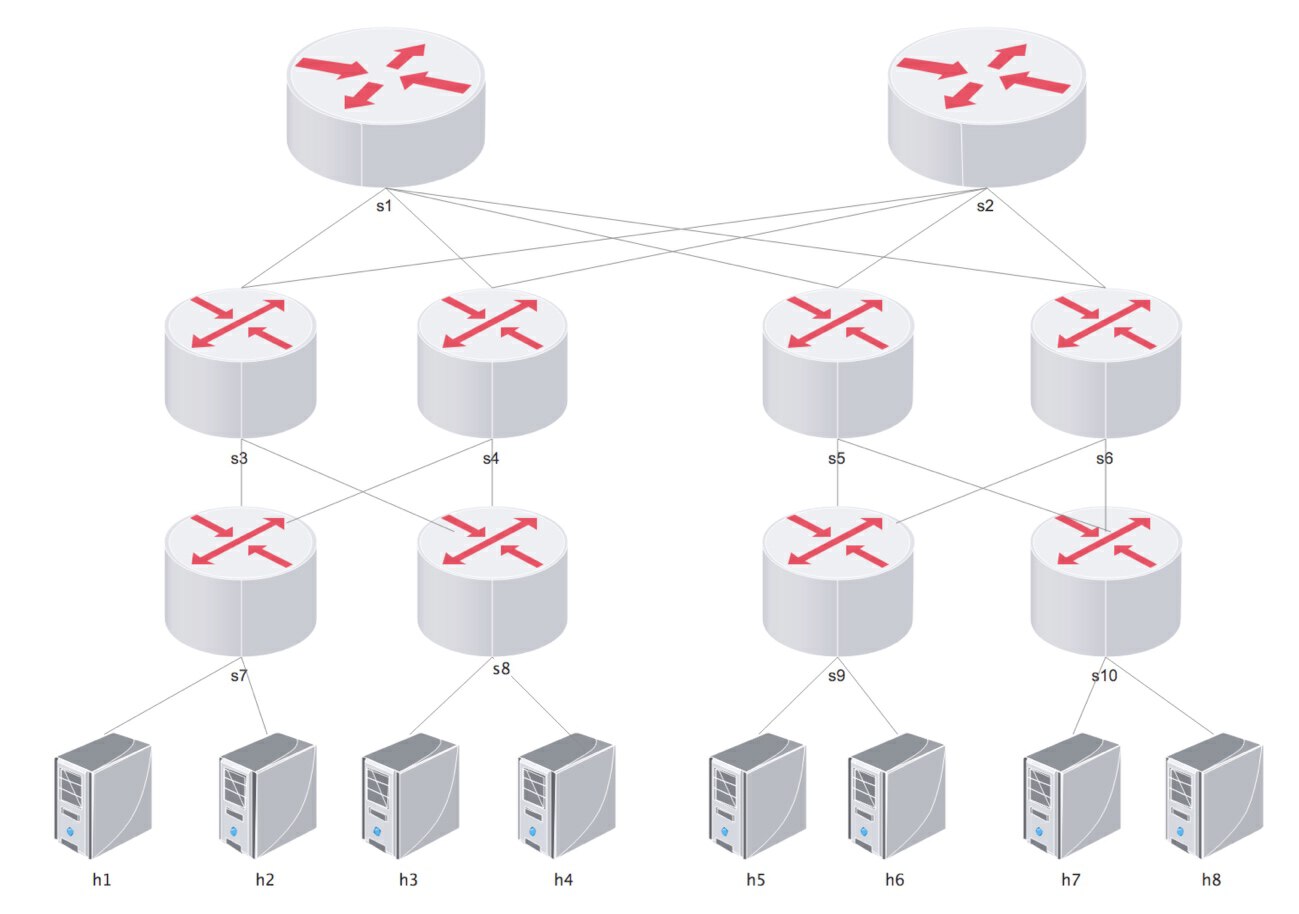

胖树拓扑结构

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
# test.py
from mininet.topo import Topo
from mininet.net import Mininet
from mininet.node import RemoteController
from mininet.link import TCLink
from mininet.util import dumpNodeConnections


class MyTopo(Topo):

    def __init__(self):
        super(MyTopo, self).__init__()

        # Marking the number of switch for per level
        L1 = 2
        L2 = 4
        L3 = 4
        L4 = 8

        # Starting create the switch
        c = []  # core switch
        a = []  # aggregate switch
        e = []  # edge switch
        h = []  # host

        # notice: switch label is a special data structure
        for i in range(L1):
            # label from 1 to n,not start with 0
            c_sw = self.addSwitch('c{}'.format(i+1))
            c.append(c_sw)

        for i in range(L2):
            a_sw = self.addSwitch('a{}'.format(L1+i+1))
            a.append(a_sw)

        for i in range(L3):
            e_sw = self.addSwitch('e{}'.format(L1+L2+i+1))
            e.append(e_sw)

        # Starting create the link between switchs
        # first the first level and second level link
        for i in range(L1):
            for j in range(4):
                self.addLink(c[i], a[j])

        # second the second level and third level link
        for i in range(L2):
            for j in range(2):
                self.addLink(a[i], e[(i//2)*2+j])

        # Starting create the host and create link between switchs and hosts
        for i in range(L3):
            for j in range(2):
                hs = self.addHost('h{}'.format(i*2+j+1))
                h.append(hs)
                self.addLink(e[i], hs)


topos = {"mytopo": (lambda: MyTopo())}

启动命令

Mininet

1
mn --switch ovsk,protocols=OpenFlow13 --custom test.py --topo mytopo --controller=remote

RYU

1
ryu-manager --observe-links xxx.py xxx.py

踩坑

主机与交换机ping通，但主机之间ping不同

原因是mininet默认使用的交换机协议版本可能是OpenFlowV1.0，使用以下命令启动Mininet

1
mn --switch ovsk,protocols=OpenFlow13

Linux 常用命令附录

1
2
3
4
ps -aux # 列出所有进程
netstat -nlp # 查看网络状态
grep xxx # 关键词过滤
